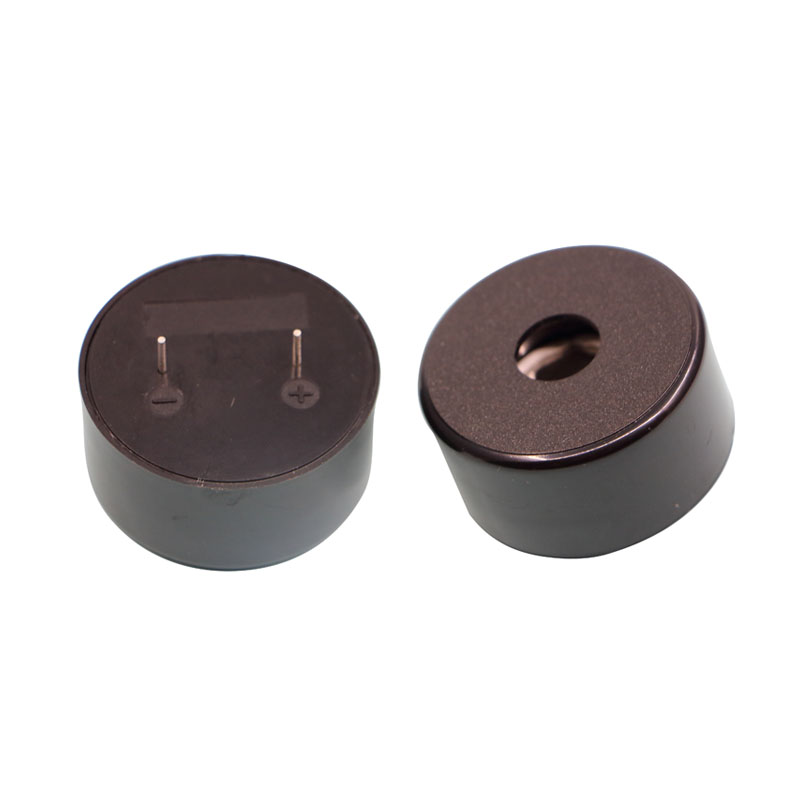

Active electromagnetic buzzer
Service Hotline
+86-769-82637582Service Hotline
+86-769-82637582
| Model | UG-9142X-2.7-3V | |
| Item | Unit | Specifications |
1 | Rated Voltage | V | 3 |
2 | Operating Voltage | V | 2.5～4.0 |
3 | Resonant Frequency | Hz | 2700±400 |
4 | *Sound Output at 10cm(Min) | dB | 80 |
5 | *Current Consumption(Max) | mA | 30 |
6 | Operating Temperature | ℃ | -20～+70 |
7 | Storage Temperature | ℃ | -25～+85 |
8 | Weight | g | 1 |
9 | RoHS |
| YES |
10. Drawing(Fig1) Unit: mm Tolerance:±0.5mm
